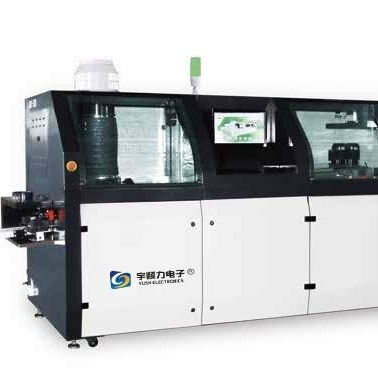

UX Series Lead Free Wave Soldering Machine
High-end 380V wave soldering system designed for superior performance and reliability in PCB assembly processes.
Product Overview
The UX series oven incorporates modular, digital, and human-centered design principles to meet evolving customer demands. This advanced system delivers exceptional functionality, performance, stability, reliability, security, maintainability, and operational efficiency while reducing operating costs. It ensures consistent product quality and production output, representing the pinnacle of wave soldering technology and the preferred investment for discerning customers.
Key Features & Components
Integrated Spray Fluxer Unit
Standard integrated spray fluxer with optional selective spray capability for precise flux application.
Modular Preheating System
Features drawer-type, modular preheating zones for flexible configuration and easy maintenance.
Advanced Solder Pot Design
Cast iron solder pot with specialized anti-corrosion coating for extended durability and performance.
Precision Width Adjustment
Manual width adjustment system with digital display for precise conveyor width settings.
Solder Pot Accessibility
Electric/manual solder pot lifting system for easy access and maintenance operations.
Technical Specifications
- Transportation System: Section floating structure prevents guide rail deformation; titanium alloy double hook fingers resist solder adhesion; direct linkage buffering with aluminum guide rails for smooth operation
- Spray Unit: Integrated modular design with quick-connect fittings; precision nozzles deliver efficient, uniform atomization for water-based flux applications
- Preheating System: Micro-hot air + infrared heating tubes; three-section temperature zones; drawer-type modular design for mixed preheating modes
- Cooling System: Forced air cooling with optional water chiller
- Solder Pot System: Special material construction with anti-corrosion treatment; easy nozzle removal/assembly; ±2℃ temperature control precision
- Control System: Windows 7 operating system with Chinese/English software; parameter setting, storage, and reuse capabilities; remote monitoring; automatic process data storage; temperature profile testing
System Components Diagram
| 01 | Buffer system |
| 02 | Flux supply system |
| 03 | Exhaust fan |
| 04 | Flux spray system |
| 05 | LCD display |
| 06 | Pre-heater |
| 07 | Solder pot lifting unit |
| 08 | Dual wave solder pot |
| 09 | Cooling system |
| 10 | Angle adjustment controller |
| 11 | Finger cleaning system |
| 12 | Conveyor system |
Packaging & Shipping
All machines are securely packaged in plywood cases to ensure safe transportation and delivery.
Our Services
Comprehensive support including installation guidance, technical assistance, and after-sales service.
Company Information
YUSH Electronic Technology Co., Ltd. specializes in the research, development, and production of PCB depaneling equipment, hot bar welding machines, and touch screen film sticking machines. Located in Dongguan City, Guangdong Province, China, our facility benefits from convenient transportation access. All products meet international quality standards and are respected in global markets. We welcome custom orders and look forward to establishing successful business relationships worldwide.
Frequently Asked Questions
Who are we?
Based in Jiangsu, China since 2014, we serve customers worldwide including Eastern Europe (20%), North America (20%), South America (15%), Southern Europe (10%), Northern Europe (10%), Western Europe (10%), South Asia (10%), and Middle East (5%). Our organization employs 301-500 professionals.
How do we guarantee quality?
Pre-production samples for approval before mass production; comprehensive final inspection before shipment.
What products do we offer?
PCB depaneling machines, PCB separators, PCB cutting machines, PCB depaneling equipment, and V-cut machines.
Why choose YUSH Electronic Technology?
Founded in 2004 and located in Jiangsu's manufacturing hub, we specialize in professional PCB separator and depanelizer electronic equipment machinery with extensive industry expertise.
