YS-12T-Automatic Tape and Reel Packaging Equipment

Dettagli del prodotto

Luogo di origine: Guangdong, Cina

Marca: YUSH

Certificazione: CE

Numero di modello: YS-12T

Termini di trasporto & di pagamento

Quantità di ordine minimo: 1 set

Prezzo: $6,000 / set

Ottieni il miglior prezzo
Evidenziare:

automatic tape and reel machine

,

PCB depaneling equipment with warranty

,

YS-12T tape reel packaging

Peso:
160 chilogrammi
Voltaggio:
220 V CA
Fonte di energia:
AC200V/50Hz
Pressione dell'aria di lavoro:
0,40~0,6 MPa
Capacità:
3K-15K UP
sistema di controllo:
Controller logico programmabile+Touch Screen+servomotore
Controllo della temperatura:
Controllo della temperatura di PID
Nutrire e Ricevere:
Dischi in gomma e dischi in carta conformi alla norma EIA-481
Larghezza del nastro:
12,16 mm
Forma di sigillatura:
Guarnizioni calde e fredde
Tensione in ingresso:
CA 220 V/50 Hz
Corrente massima:
10A
Dimensioni della macchina:
2030*528*583(L*L*A)
Peso netto:
160 kg
Configurazione selettiva:
Sistema di rilevamento delle immagini
Peso:
160 chilogrammi
Voltaggio:
220 V CA
Fonte di energia:
AC200V/50Hz
Pressione dell'aria di lavoro:
0,40~0,6 MPa
Capacità:
3K-15K UP
sistema di controllo:
Controller logico programmabile+Touch Screen+servomotore
Controllo della temperatura:
Controllo della temperatura di PID
Nutrire e Ricevere:
Dischi in gomma e dischi in carta conformi alla norma EIA-481
Larghezza del nastro:
12,16 mm
Forma di sigillatura:
Guarnizioni calde e fredde
Tensione in ingresso:
CA 220 V/50 Hz
Corrente massima:
10A
Dimensioni della macchina:
2030*528*583(L*L*A)
Peso netto:
160 kg
Configurazione selettiva:
Sistema di rilevamento delle immagini
YS-12T-Automatic Tape and Reel Packaging Equipment

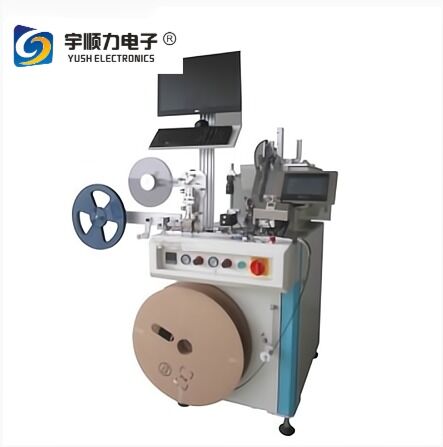

YS-12T Automatic Tape and Reel Packaging Equipment
The YS-12T Auto Component Taping Machine provides automated packaging solutions for electronic components with precision and efficiency.
Key Features
  • Automatic feeding via feeding tube with manipulator placement
  • Designed for SOP8, SOP14, and SOP16 component packaging
  • Compatible with 12mm and 16mm wide carrier tapes
  • Optional image detection system for quality control
  • Supports both hot and cold sealing methods
Technical Specifications
Application Automatic Taping for SOP8, SOP14, SOP16 Components
Capacity 3,000 - 15,000 UPH (varies by product type)
Control System PLC + Touch Screen + Servo Motor
Temperature Control PID Temperature Control
Tape Width 12mm, 16mm
Input Voltage AC220V/50Hz
Maximum Current 10A
Working Air Pressure 0.40-0.6Mpa (Dry and Clean)
Machine Dimensions 2030×528×583mm (L×W×H)
Net Weight 160kg (including vibratory disc)
Operational Process
  • Automatic product feeding via feeding rack system
  • Precision placement from vibratory disc to carrier belt
  • Tape-weaving module completes sealing process
  • Intuitive touch screen interface for machine operation
  • Optional image detection for orientation, presence, pin verification, and batch control
