Name: Fully Automatic High Precision 2 Heads Desktop Vision Pick and Place Machine
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-T36VA
Price: 401.00 USD
Availability: InStock

Dettagli del prodotto

Luogo di origine: Jiangsu, Cina

Marca: YUSH

Numero di modello: YS-T36VA

Termini di trasporto & di pagamento

Quantità di ordine minimo: 1 set

Prezzo: $2,800 / set

Ottieni il miglior prezzo

Dettagli del prodotto

Descrizione del prodotto

Evidenziare:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                fully automatic PCB depaneling machine, high precision pick and place machine, desktop vision placement machine


Peso:	40KG	Dimensioni:	940 mm(L) x 710 mm(L) x 340 mm(A)
Alimentazione elettrica:	AC220V (50Hz, monofase) /AC110V (60Hz, monofase); 300W	Fornitura d'aria:	Non è necessaria alcuna alimentazione esterna
Generazione di vuoto:	Pompa del vuoto incorporata	Quantità di testa di montaggio:	Due
Velocità di montaggio:	2500 CPH	Accuratezza di montaggio:	0,025 mm
Tipo di componente:	Resistenza, condensatore, diodo, SOT, SOP, QFP, QFN, BGA	Gamma componente:	0402 a 22mmX22mm
Spessore del PCB:	0.6 mm~3.5 mm	Dimensioni del circuito stampato:	345 mm(L) x 360 mm(L)
Componenti principali:	PLC, motore, cuscinetto, cambio, motore	Azionamento dell'asse XY:	Motore passo-passo con controllo ad anello chiuso
Calibrazione visiva:	Telecamera industriale digitale con doppio CCD

Peso:	40KG
Dimensioni:	940 mm(L) x 710 mm(L) x 340 mm(A)
Alimentazione elettrica:	AC220V (50Hz, monofase) /AC110V (60Hz, monofase); 300W
Fornitura d'aria:	Non è necessaria alcuna alimentazione esterna
Generazione di vuoto:	Pompa del vuoto incorporata
Quantità di testa di montaggio:	Due
Velocità di montaggio:	2500 CPH
Accuratezza di montaggio:	0,025 mm
Tipo di componente:	Resistenza, condensatore, diodo, SOT, SOP, QFP, QFN, BGA
Gamma componente:	0402 a 22mmX22mm
Spessore del PCB:	0.6 mm~3.5 mm
Dimensioni del circuito stampato:	345 mm(L) x 360 mm(L)
Componenti principali:	PLC, motore, cuscinetto, cambio, motore
Azionamento dell'asse XY:	Motore passo-passo con controllo ad anello chiuso
Calibrazione visiva:	Telecamera industriale digitale con doppio CCD

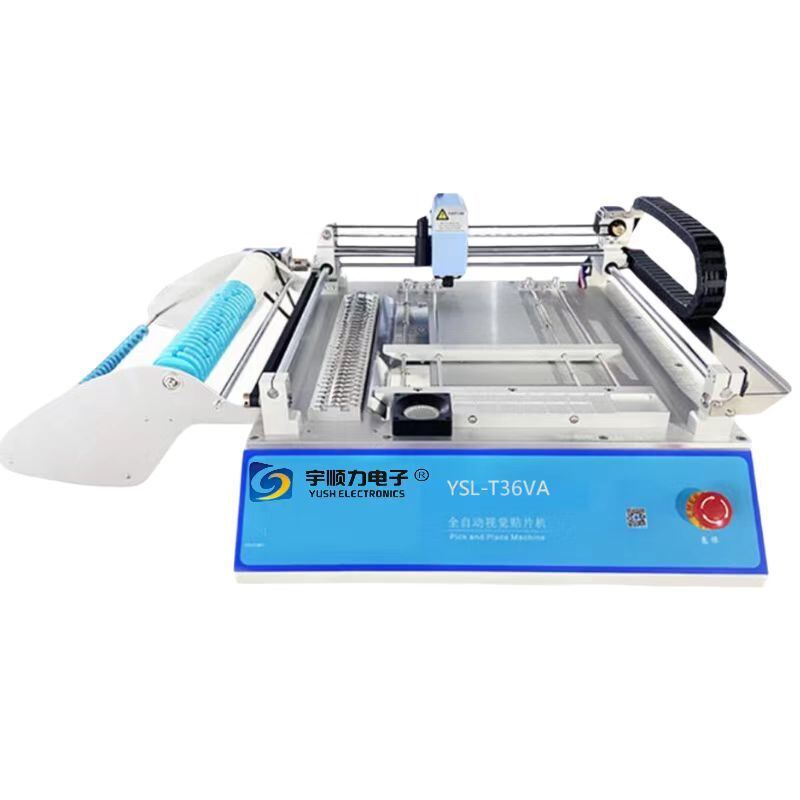

Fully Automatic High Precision 2 Heads Desktop Vision Pick and Place Machine

Advanced desktop vision pick and place machine featuring dual mounting heads and precision vision calibration for efficient PCB assembly operations.

Product Characteristics

X, Y axis driven by stepping motor with closed loop control and inlet synchronous belt
Dual visual calibration (CCD digital industrial camera) with Mark point calibration support
External computer running Windows operating system
29 sets of tape feeder stack positions (8mm-22, 12mm-4, 16mm-2, 24mm-1)
Supports minimum 0402 devices with 0.5mm pin spacing chips and 4mm height shaped elements
14 front IC bits with support for countertop custom IC tray and vibrating feeder
Maximum PCB size support: 345mm × 360mm

Technical Specifications

Dimensions	940mm (L) × 710mm (W) × 340mm (H)
Weight	40kg
Power Supply	AC220V (50Hz, single-phase) / AC110V (60Hz, single-phase); 300W
Air Supply	No external power supply required
Vacuum Generation	Built-in vacuum pump
Mounting Head Quantity	Two
Mounting Speed	2500 CPH (under optimal conditions)
Mounting Accuracy	0.025mm
Component Types	Resistance, capacitor, cylindrical diode, aluminum capacitor, SOT, SOP, QFP, QFN, BGA, etc.
Component Range	0402 to 22mm × 22mm components
PCB Thickness	0.6mm - 3.5mm
PCB Size	345mm (L) × 360mm (W) standard

Packing & Delivery

Company Profile

YUSH Electronic Technology Co., Ltd was founded in 2005 and is located in the world manufacturing city Jiangsu, specializing in professional PCB separator and PCB depanelizer electronic equipment machinery. The company has advanced production and processing equipment and an experienced development and manufacturing team, with half of the team members having over 10 years of experience in the electronic equipment industry.

Since 2004, the company leadership has invested in developing and manufacturing PCB separators and PCB depaneling machines. We prioritize product quality, safety, and innovation, resulting in many high-quality, stable performance, and cost-effective products that improve production yields, increase productivity, and enhance our customers' market competitiveness.

We have designed different types of PCB separators and depaneling machines including manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router models. Due to our commitment to quality and competitive pricing, our customers are located worldwide. YUSH has become one of the largest PCB separator production bases in China.

Frequently Asked Questions

Who are we?

We are based in Jiangsu, China, starting from 2014. Our products are sold to Eastern Europe (20.00%), North America (20.00%), South America (15.00%), Southern Europe (10.00%), Northern Europe (10.00%), Western Europe (10.00%), South Asia (10.00%), and Mid East (5.00%). Our office employs 301-500 people.

How can we guarantee quality?

We always provide pre-production samples before mass production and conduct final inspections before shipment to ensure product quality.

What can you buy from us?

We offer PCB depaneling machines, PCB separators, PCB cutting machines, PCB depaneling equipment, and V-cut machines.

Why should you buy from us instead of other suppliers?

YUSH Electronic Technology Co., Ltd. was founded in 2004 and is located in the world manufacturing city Jiangsu. We specialize in professional PCB separator and depanelizer electronic equipment machinery with advanced production facilities and experienced technical expertise.

What services can we provide?

Accepted Delivery Terms: FOB, CIF, EXW, DDP, DDU, Express Delivery, DAF
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow
Languages Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, Korean, Hindi
