Evidenziare:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                high efficiency PCB depaneling machine, punching machine for PCB, PCB depaneling machine with warranty


Peso:	530/700 di chilogrammo	Alimentazione elettrica:	110/220 v
Forza di colpo:	3-30 T	Voltaggio:	110/220 v
Dimensioni:	730X810X1700mm	Pressione atmosferica:	0,5-0,7 MPa
Area di lavoro:	330 x 220 mm	Dimensioni dello strumento PCB:	7308101700mm
Peso dello strumento PCB:	530 kg	Depressione:	0.45-0.70 Pa
Componenti principali:	PLC, motore	Tipo di macchina:	punzonatrice
Dimensioni del piano di lavoro:	330 x 220 mm	Modello:	Istituzione di controllo
Pressione di esercizio:	0,5-0,7 MPa

Peso:	530/700 di chilogrammo
Alimentazione elettrica:	110/220 v
Forza di colpo:	3-30 T
Voltaggio:	110/220 v
Dimensioni:	730X810X1700mm
Pressione atmosferica:	0,5-0,7 MPa
Area di lavoro:	330 x 220 mm
Dimensioni dello strumento PCB:	7308101700mm
Peso dello strumento PCB:	530 kg
Depressione:	0.45-0.70 Pa
Componenti principali:	PLC, motore
Tipo di macchina:	punzonatrice
Dimensioni del piano di lavoro:	330 x 220 mm
Modello:	Istituzione di controllo
Pressione di esercizio:	0,5-0,7 MPa

High Efficiency Punching Machine

High Efficiency Punching Machine YSPE

Advanced punching machine designed for precision PCB depaneling with superior efficiency and reliability.

Key Features

Compatible with Rigid PCB, Flexible PCB (FPC), and Rigid-Flexible PCB materials
Utilizes punching mold technology for high-efficiency cutting
Supports multiple mold configurations with easy mold changing capability
Simple and safe operation with user-friendly controls

Technical Specifications

Model	YSPE
Punch Capacity (T)	3 (customizable up to 30T)
Working Area (mm)	330 × 220 (customizable)
Voltage (V)	110/220
Working Air Pressure (MPa)	0.5-0.7
PCB Punching Tool Size (mm)	730 × 810 × 1700
PCB Punching Tool Weight (kg)	530

Advanced Performance Features

Robust construction with mobility provided by 4 casters
Versatile mold compatibility with easy mold changing system
Automatic lower mold in/out mechanism for easy product handling
Minimizes internal stress during PCB cutting to prevent tin stress cracking

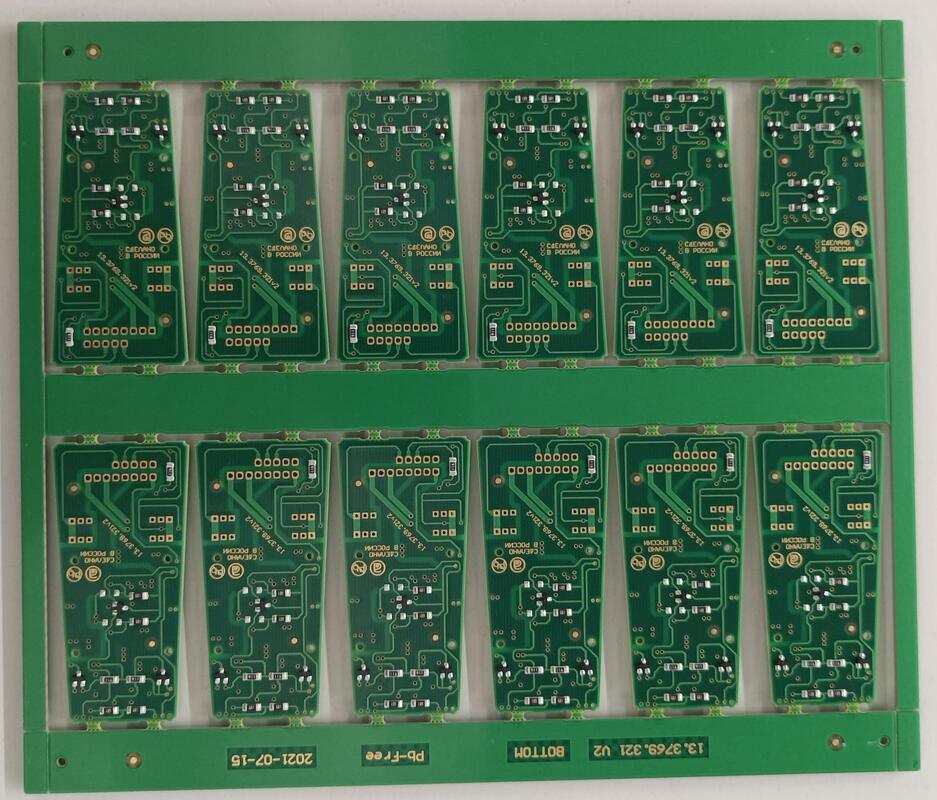

High-efficiency punching for semi-finished PCB processing
Custom mold and die manufacturing available per customer requirements

The YSPE High Efficiency Punching Machine delivers precision, reliability, and superior performance for all your PCB depaneling needs with customizable options to meet specific production requirements.
