Name: Pcb Guillotine Machine . Pcb Lead Cutter. Pcb Lead Cutting Machine
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSVC-3
Price: 10 USD
Availability: InStock

Dettagli del prodotto

Luogo di origine: Jiangsu, Cina

Marca: YUSH

Numero di modello: YSVC-3

Termini di trasporto & di pagamento

Quantità di ordine minimo: 1 set

Prezzo: $10,000 / set

Ottieni il miglior prezzo

Dettagli del prodotto

Descrizione del prodotto

Evidenziare:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB guillotine lead cutter, PCB depaneling cutting machine, PCB lead trimming machine


Peso:	85 kg	Energia:	40 W
Modello:	YSVC-3	Dimensioni del pacchetto:	780mmx500mmx620mm
Ridurre al minimo lo spessore:	0,3-3,5 mm	Peso della macchina:	185 kg
Lunghezza massima di depaneling:	Illimitato	Altezza componente massima:	50 mm
Min Board Thickness:	0,3 mm	Max Board Thickness:	2,0 mm
Classificazione dei componenti:	1 mm	Metodo di controllo:	a comando pneumatico
metodo di funzionamento:	Pedale	Componenti principali:	Motore
Stress da depaneling:	Nessuna flessione/tensione

Peso:	85 kg
Energia:	40 W
Modello:	YSVC-3
Dimensioni del pacchetto:	780mmx500mmx620mm
Ridurre al minimo lo spessore:	0,3-3,5 mm
Peso della macchina:	185 kg
Lunghezza massima di depaneling:	Illimitato
Altezza componente massima:	50 mm
Min Board Thickness:	0,3 mm
Max Board Thickness:	2,0 mm
Classificazione dei componenti:	1 mm
Metodo di controllo:	a comando pneumatico
metodo di funzionamento:	Pedale
Componenti principali:	Motore
Stress da depaneling:	Nessuna flessione/tensione

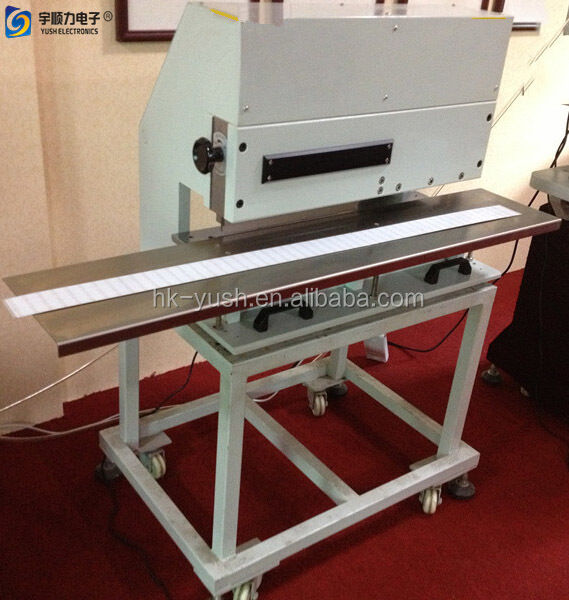

Pcb Guillotine Machine . Pcb Lead Cutter. Pcb Lead Cutting Machine

PCB Guillotine Machine - PCB Lead Cutting Machine

YSVC-3 Model - Professional PCB depaneling solution for efficient and safe board separation

Technical Specifications

Model	YSVC-3
The Longest Cut	Unlimited
Package Size	780mm x 500mm x 620mm
Cut Thickness	0.3-3.5mm
Machine Weight	185Kg

Application Scope

Cut any length metal board safely and easily
Separates long boards directly without turning direction
Separates boards up to 2.0mm thick metal board
Shears boards safely with parts as close as 1mm to the score line, including ceramic capacitors
Operator foolproof design - panels cannot be inserted into knives except on the score line
Handles high components up to 50mm
Avoids bow waves that can occur with round knives
Easy adjustment of distance between knives

Key Advantages

Maximum PCB depaneling length is unlimited
Depaneling PCB without bending and tension stress
Safety use with easy operation
Depaneling process without vibrations

Technical Features

Designed to depanel pre-scored PCB carefully without bending and tension stress
Even sensitive SMD components like ceramic capacitors remain undamaged during depaneling
Thin boards down to 0.3mm can be worked safely
Vibration-free depaneling process
Pneumatic-driven and electromagnetic valve control method
Foot pedal operation for depaneling control
Accommodates components up to 50mm near V-groove
Easy adjustment of PCB insertion gap
