                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                355nm UV laser cutting machine, 10W PCB depaneling machine, high-precision FPC laser cutter


Peso:	1600 CHILOGRAMMI	Energia:	10 kW
Voltaggio:	220V / 110 V.	Tipo laser:	Laser UV da 10 W
Lunghezza d'onda del laser:	355nm	Potenza massima:	10W /15W
Frequenza di ripetizione:	1-250 kHz	Precisione del CCD:	0,005 mm
Max Working Range:	450 mm*430 mm	Dimensione del punto del raggio:	0.015 mm ± 0,003 mm
Dimensioni:	1500 mmX1800 mmX1660 mm	Precisione del piano di lavoro:	± 0,003 mm
Ripetizione del piano di lavoro:	±0,002 mm	Intervallo di portata della tabella:	500 mm*500 mm
Componenti principali:	PLC, motore, cuscinetto, motore, recipiente a pressione, ingranaggio, pompa

Peso:	1600 CHILOGRAMMI
Energia:	10 kW
Voltaggio:	220V / 110 V.
Tipo laser:	Laser UV da 10 W
Lunghezza d'onda del laser:	355nm
Potenza massima:	10W /15W
Frequenza di ripetizione:	1-250 kHz
Precisione del CCD:	0,005 mm
Max Working Range:	450 mm*430 mm
Dimensione del punto del raggio:	0.015 mm ± 0,003 mm
Dimensioni:	1500 mmX1800 mmX1660 mm
Precisione del piano di lavoro:	± 0,003 mm
Ripetizione del piano di lavoro:	±0,002 mm
Intervallo di portata della tabella:	500 mm*500 mm
Componenti principali:	PLC, motore, cuscinetto, motore, recipiente a pressione, ingranaggio, pompa

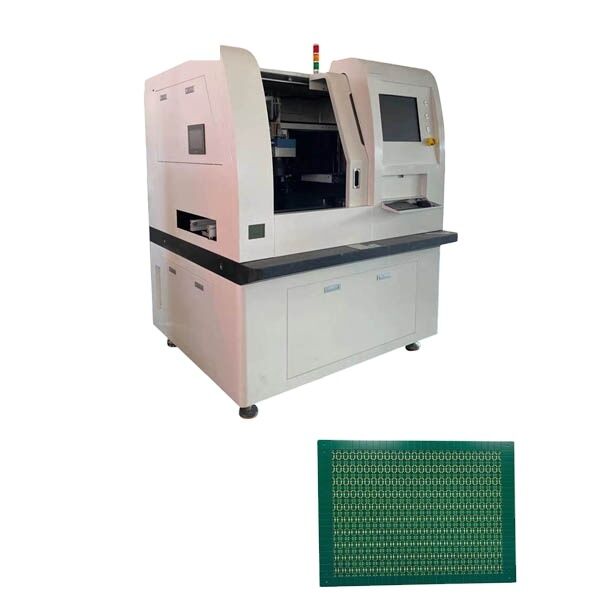

355nm 10W /15W High-precision CCD FPC/PCB UV Laser Cutting Machine

With perfect CAM interface, this machine supports mainstream drilling and milling file formats. The user-friendly interface features sealed optical paths and stable, reliable integration with compact structure. The modular electronic control system ensures easy maintenance.

Ideal for processing soft and hard combination boards (R-F PCBA), including flexible boards and rigid-flex combinations, this equipment offers enhanced adaptability and cost-effectiveness.

FPC UV Laser Cutting Machine Applications

Cutting various flexible circuit board materials and cover films with clean, carbonization-free results
High-quality, high-speed cutting of rigid materials up to 1mm thickness
Minimal burrs due to UV light decomposition and vaporization process
Small thermal effect with precise, smooth cutting edges and steep sidewalls
Capable of cutting various substrate materials including silicon, ceramics, and glass
Precision etching forming of various functional films

YSV-7A Product Features

Neat and smooth edges after cutting
No burrs, dust, or particle residue
High precision for small arcs and fine cutting applications
Effectively reduces molding failure rates
Single-pass cutting of composite workpieces with multiple materials and thickness combinations
Automatic laser head height adjustment for double-sided surface-mounted FPC handling

Non-contact processing eliminates mechanical stress and deformation. The linear motor platform offers high speed, precision, low wear, easy maintenance, and reduced maintenance costs.

Technical Specifications

Specification/Model	YSV-7A
Laser Head	SP (USA)
Laser Type	10W UV Laser
Laser Wavelength	355nm
Max Power	10W / 15W
Repetition Frequency	1-250kHz
Worktable Location Precision	±0.003mm
Worktable Repetition Precision	±0.002mm
Table Reach Range	500mm × 500mm
CCD Location Precision	0.005mm
Max Working Range	450mm × 430mm
Beam Spot Size	0.015mm ± 0.003mm
Dimensions (L×W×H)	1500mm × 1800mm × 1660mm
Weight	1800kg

Laser Source

Features imported US UV shock light with excellent optical performance, long lifespan, simple structure, and easy operation. This proven brand has been in use for over 10 years.

Galvanometer System

Utilizes world's most advanced galvanometer system with feedback and automatic calibration equipment to ensure processing efficiency and accuracy.

Taishan Green Marble Platform

High-quality "Taishan green" stone processed mechanically and hand-finished for precision. Features black luster, fine structure, uniform texture, excellent stability, high strength, and hardness while maintaining precision under heavy loads. Rust-free, acid-resistant, and abrasion-resistant.

Marble Platform Features

Accuracy class: "000" level, flatness 2μm
Compressive strength: 245-254 N/mm²
Elastic modulus: 1.27-1.47 N/mm² (higher than cast iron)
Linear expansion coefficient: 4.61 × 10⁻⁶/℃
Inner damping coefficient: 15× larger than steel with excellent shock absorption
Shore strength: HS70+ with 5-10× higher wear resistance than cast iron

CCD System

High-speed image acquisition system with high-precision image positioning and matching ensures exceptional accuracy.

Working Platform

THK (China) investment featuring precision linear motion guides, ball splines, ball screws, cross roller collars, and actuators from the industry's largest supplier.

FPC UV Laser Cutting Results
