Evidenziare:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                900mm PCB cutting machine, PCB depaneling machine for assembly line, long cutting length PCB cutter


Efficace lunghezza di taglio:	900mm	Voltaggio:	220 / 110 V
Energia:	3.5 KW	Peso:	40KG
Dimensioni:	420280400mm	Lunghezza:	330 mm
Velocità di taglio:	0~400mm/s	Spessore di taglio:	1,0~3,5mm
Alimentazione elettrica:	110/220 v	Componenti principali:	Motore
Materiale della lama:	SKH-9	Materiale della muffa:	SKH-11 Acciaio
Modalità operative:	Manuale, semiautomatico, completamente automatico	Tempi di consegna:	1 giorno
Capacità produttiva:	1000 set

Efficace lunghezza di taglio:	900mm
Voltaggio:	220 / 110 V
Energia:	3.5 KW
Peso:	40KG
Dimensioni:	420280400mm
Lunghezza:	330 mm
Velocità di taglio:	0~400mm/s
Spessore di taglio:	1,0~3,5mm
Alimentazione elettrica:	110/220 v
Componenti principali:	Motore
Materiale della lama:	SKH-9
Materiale della muffa:	SKH-11 Acciaio
Modalità operative:	Manuale, semiautomatico, completamente automatico
Tempi di consegna:	1 giorno
Capacità produttiva:	1000 set

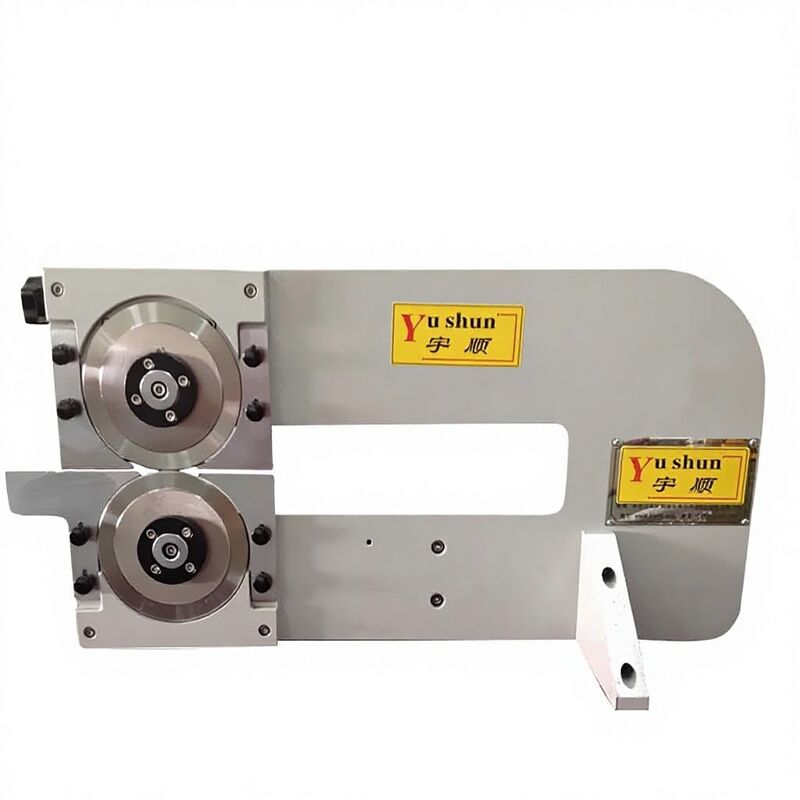

900mm Effective Cutting Length PCB Cutting Machine for PCB assembly Line

900mm Effective Cutting Length PCB Cutting Machine

Professional PCB depaneling machine designed for PCB assembly lines, model YSV-1

Key Features

Easy operating modes with multiple control options
Simple setting with edge guiding system
Re-grindable cutters for extended tool life
Minimizes micro-cracks in solder joints

Technical Specifications

Model	YSV-1
Length (mm)	330
Cutting Speed (mm/s)	0~400
Cutting Thickness (mm)	1.0~3.5
Power Supply (V)	110/220
Size (mm)	420×280×400
Weight (Kg)	40
Guarantee (Year)	1

Applications

Suitable for electronics, cell phones, computers, PCB, FPC (flexible printed circuit board), and LED manufacturing applications.

Tool Construction

Mold made of SKH-11 Steel with SKH-9 blade from Japan, designed for high-strength cutting and excellent toughness, capable of cutting metal boards.

Technical Characteristics

Precision structure with evenly distributed load to eliminate internal stress
Safe and easy to operate design
Minimizes shearing stress to prevent micro-cracks in solder joints
Guiding device for PCB "V-CUT" alignment
Ball bearing slideways for easy PCB edge guide setting
Ball bearing slideways for simple tabletop height adjustment
Multiple operating modes: manual handwheel, semi-automatic, or fully-automatic continuous running
Re-grindable cutters with custom shape options available

Manufacturer Advantages

Original manufacturer of YSV-1 best-selling manual PCB cutter with competitive pricing
Same-day technical support services
Rapid customer response within 30 minutes for handling complaints
Depanel experts providing professional PCB solutions
Reliable machine maker with 15 experts, each with over 6 years of experience
