Evidenziare:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                LED PCB depaneling machine, simple PCB depaneling board, PCB depaneling machine manufacturers


Peso:	350KG	Voltaggio:	220 V
Tipo di macchina:	macchina per depaneling PCB	Misurare:	L1300W400H1000mm
Energia:	110V/220V CA 60HZ/50HZ	Spessore del PCB:	0,8-3,0 mm
Bordo applicabile:	Pannello LED, fibra di legno, pannello in alluminio	Componenti principali:	PLC, motore
Velocità di taglio:	Regolabile	Regolazione taglierina superiore:	0-5 mm
Larghezza PCB singola:	15-20 mm	Materiale della lama:	Skh51 Acciaio ad alta velocità
Processo di taglio:	Illimitato	Cintura del trasportatore:	Incluso
Taglierine multiple:	SÌ

Peso:	350KG
Voltaggio:	220 V
Tipo di macchina:	macchina per depaneling PCB
Misurare:	L1300W400H1000mm
Energia:	110V/220V CA 60HZ/50HZ
Spessore del PCB:	0,8-3,0 mm
Bordo applicabile:	Pannello LED, fibra di legno, pannello in alluminio
Componenti principali:	PLC, motore
Velocità di taglio:	Regolabile
Regolazione taglierina superiore:	0-5 mm
Larghezza PCB singola:	15-20 mm
Materiale della lama:	Skh51 Acciaio ad alta velocità
Processo di taglio:	Illimitato
Cintura del trasportatore:	Incluso
Taglierine multiple:	SÌ

LED Pcb Board Manufacturers De-paneling / Simple Pcb Board De-paneling

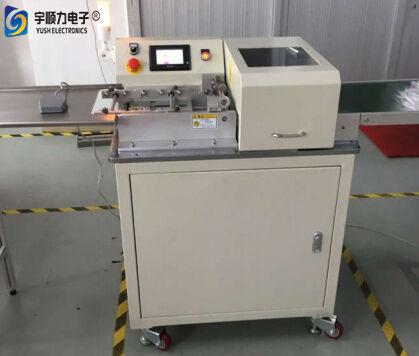

YSVJ-650 PCB Depaneling Machine

The YSVJ-650 is a professional PCB depaneling machine designed for efficient separation of V-cut printed circuit boards. This robust industrial solution ensures clean, stress-free cutting while maintaining board integrity.

Key Features & Benefits

Integral shaft design for top and bottom knives ensures easy installation and maintenance
Computer screen control with preset production counting and direct gap display
Compatible with all V-cut PCB boards for universal application
Stress-reducing cutting technology prevents solder joint cracking
Multiple cutter configuration enables simultaneous cutting of several boards
Top cutter wheel features 0-5mm fine adjustment capability
Adjustable knife spacing accommodates single PCB boards from 15-20mm width
SKH51 high-speed steel blades provide exceptional wear resistance and longevity
Variable cutting speed controlled via convenient turn-knob adjustment
Integrated conveyor belt system for automated output and seamless production line integration
Versatile material compatibility including LED panels, fiberboards, aluminum boards (400mm+), and specialty boards
High-efficiency operation ideal for mass production environments

Technical Specifications

Power Supply	110V/220V AC 60Hz/50Hz
Dimensions	1300mm (L) × 400mm (W) × 1000mm (H)
Weight	350kg
Cutting Process	Unlimited cutting capacity
PCB Thickness Range	0.8mm - 3.0mm
Compatible Materials	LED panels, fiberboards, aluminum boards (400mm+), and specialty boards
