Evidenziare:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                high efficiency PCB depaneling machine, multi blade PCB depaneling machine, practical PCB assembly depaneling machine


Peso:	350KG	Misurare:	L1300W400H1000mm
Energia:	110V/220V CA 60HZ/50HZ	Spessore del PCB:	0,8-3,0 mm
Velocità di taglio:	Regolabile	Regolazione taglierina superiore:	0-5 mm
Larghezza PCB singola:	15-20 mm	Materiale della lama:	Skh51 Acciaio ad alta velocità
Tipi di schede:	Pannello LED, pannello in fibra, pannello in alluminio (>400 mm), pannello speciale	Componenti principali:	PLC, motore
Processo di taglio:	Illimitato	Taglierine multiple:	SÌ
Cintura del trasportatore:	Incluso	Ridurre lo stress:	Ridotto
Schermo di visualizzazione:	Visualizzazione dello spazio vuoto

Peso:	350KG
Misurare:	L1300W400H1000mm
Energia:	110V/220V CA 60HZ/50HZ
Spessore del PCB:	0,8-3,0 mm
Velocità di taglio:	Regolabile
Regolazione taglierina superiore:	0-5 mm
Larghezza PCB singola:	15-20 mm
Materiale della lama:	Skh51 Acciaio ad alta velocità
Tipi di schede:	Pannello LED, pannello in fibra, pannello in alluminio (>400 mm), pannello speciale
Componenti principali:	PLC, motore
Processo di taglio:	Illimitato
Taglierine multiple:	SÌ
Cintura del trasportatore:	Incluso
Ridurre lo stress:	Ridotto
Schermo di visualizzazione:	Visualizzazione dello spazio vuoto

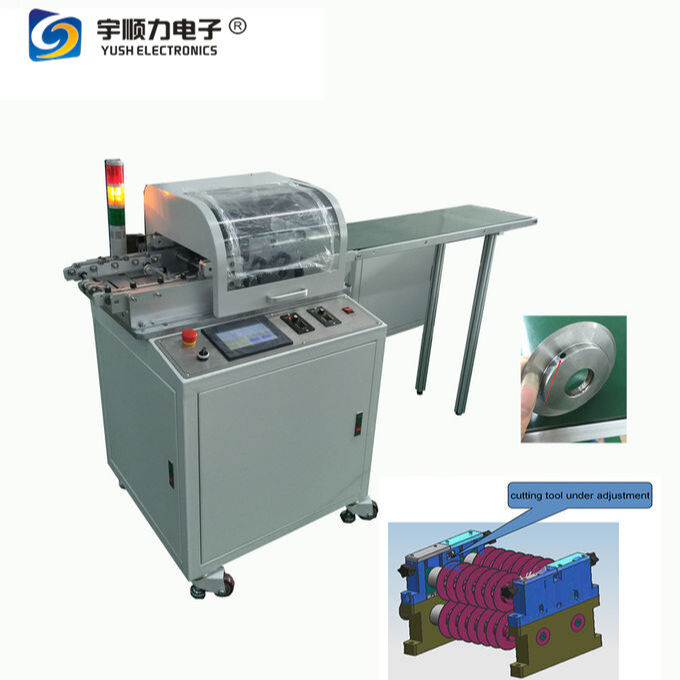

Super Practical High Efficiency Multi Blades PCB Depaneling Machine for PCB Assembly

High Efficiency PCB Depaneling Machine

Super Practical Multi-Blades PCB Depaneling Machine designed for efficient PCB assembly operations with advanced features for mass production.

Key Features & Benefits

Integral shaft design for top and bottom knives ensures easy installation and maintenance
Computer screen control with production counting and direct gap display for precise operation
Compatible with all V-cut PCB boards for universal application
Reduces cutting stress to prevent solder joint cracking and board damage
Multiple cutter system enables simultaneous cutting of several boards
Top cutter wheel adjustable from 0-5mm for fine-tuning cutting parameters
Adjustable knife distance suitable for single PCB boards within 15-20mm width
SKH51 high-speed steel blades provide exceptional wear resistance and long service life
Variable cutting speed controlled by convenient turn-knob adjustment
Integrated conveyor belt system for automatic board ejection and seamless production line integration
Multi-blade operation ensures simple, efficient performance ideal for mass production environments

Technical Specifications

Power Supply	110V/220V AC 60HZ/50HZ
Dimensions	L1300 × W400 × H1000mm
Weight	350 kg
Cutting Process	Unlimited operation capability
PCB Thickness Range	0.8-3.0mm
Compatible Materials	LED panels, fiberboards, aluminum boards (≥400mm), and special boards
