Name: High accuracy /High quality Integrated selective wave soldering YS-320Y/ YS-320YT
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-320Y/ YS-320YT
Price: 18000 USD
Availability: InStock

Dettagli del prodotto

Place of Origin: Jiangsu

Marca: YUSH

Certificazione: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000

Model Number: YS-320Y/ YS-320YT

Termini di trasporto & di pagamento

Minimum Order Quantity: 1set

Prezzo: USD18000

Packaging Details: wooden case

Delivery Time: 3-5dyas

Payment Terms: L/C, D/P, T/T, Western Union,Paypal

Supply Ability: 100set

Ottieni il miglior prezzo

Dettagli del prodotto

Descrizione del prodotto

Evidenziare:

Applicable PCB board size:	L*W : 50×50～320×250 mm	Applicable PCB board size Applicable PCB board thickness:	Substrate thickness：0.8～3 mm / Pin length：3mm
Component height:	Less than 100mm above the substrate / Less than 50mm below the substrate	Substrate shape and conditions:	1. Substrate placement edge: more than 3mm from the substrate process edge. \ n2. The weight including components is 5KG The following 3. Substrate bending: less than 0.5mm
Tin furnace:	Tin furnace material/capacity: All-titanium alloy material / 12KG Tin bath capacity: Power: 4*500W, 2KW	Preheating power:	Infrared preheating 1KW
Total power:	AC 220V 3.5KW	N2 Requirements:	Nitrogen purity：99.999% Pressure/Consumption：0.5MPa / 20ℓ/min～30ℓ/min / 1.2 cubic meters
Flux nozzle:	0.5mm precision fluid nozzle imported from Japan	Flux capacity:	2 L
Gas source:	0.5-0.7Mpa

Applicable PCB board size:	L*W : 50×50～320×250 mm
Applicable PCB board size Applicable PCB board thickness:	Substrate thickness：0.8～3 mm / Pin length：3mm
Component height:	Less than 100mm above the substrate / Less than 50mm below the substrate
Substrate shape and conditions:	1. Substrate placement edge: more than 3mm from the substrate process edge. \ n2. The weight including components is 5KG The following 3. Substrate bending: less than 0.5mm
Tin furnace:	Tin furnace material/capacity: All-titanium alloy material / 12KG Tin bath capacity: Power: 4*500W, 2KW
Preheating power:	Infrared preheating 1KW
Total power:	AC 220V 3.5KW
N2 Requirements:	Nitrogen purity：99.999% Pressure/Consumption：0.5MPa / 20ℓ/min～30ℓ/min / 1.2 cubic meters
Flux nozzle:	0.5mm precision fluid nozzle imported from Japan
Flux capacity:	2 L
Gas source:	0.5-0.7Mpa

High accuracy /High quality Integrated selective wave soldering YS-320Y/ YS-320YT

High accuracy /High quality Integrated selective wave soldering YS-320Y/ YS-320YT

Solve the difficulties in DIP welding

Solve the flexible production of multiple varieties and small batches (flexible and convenient)
Quick online welding, no fixtures required (direct welding can be done with a safe distance)
Extremely low equipment purchase cost (low initial investment cost)
Extremely low usage and maintenance costs (saving tin slag, flux, electricity and consumables)
The tin penetration rate is 100% and the welding yield rate is over 98%
Extremely low floor area (about 1 square meter)

Selective wave soldering working mode

During offline selective welding,The welding nozzle is fixed.The PCB board is set

Move in the X,Y, and Z axes to achieve the soldering of PCB solder joints.

High accuracy /High quality Integrated selective wave soldering YS-320Y/ YS-320YT 0

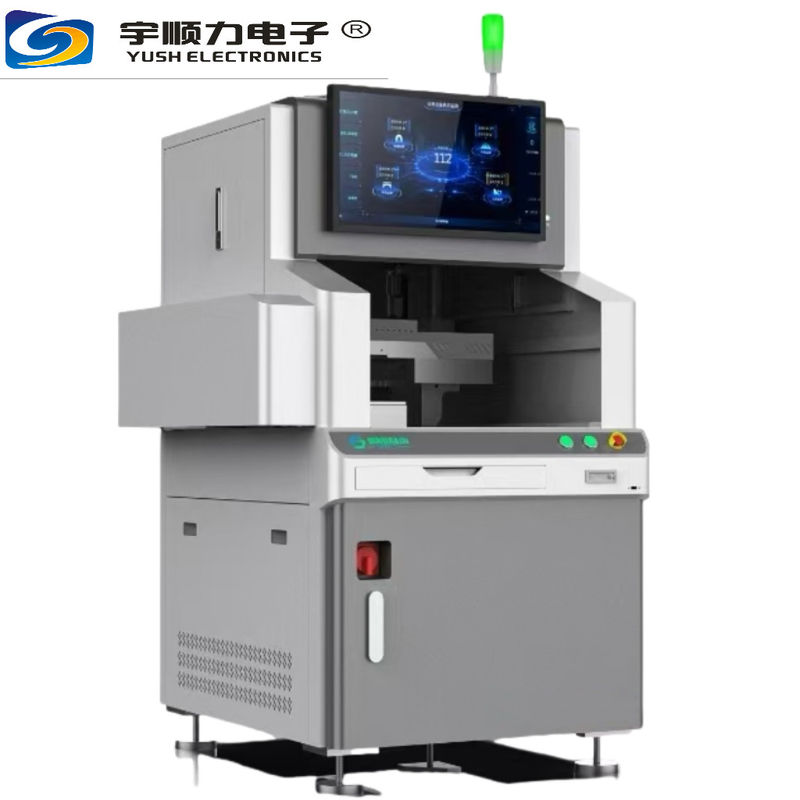

Integrated selective wave soldering

Specification items	YS-320Y/ YS-320YT
Applicable PCB board size	L*W : 50×50～320×250 mm
Applicable PCB board thickness	Substrate thickness:0.8～3 mm / Pin length:within 3mm
Component height	Less than 100mm above the substrate / Less than 50mm below the substrate
Substrate shape and conditions	1. Substrate placement edge: more than 3mm from the substrate process edge. n2. The weight including components is 5KG The following 3. Substrate bending: less than 0.5mm
Tin furnace	Tin furnace material/capacity: All-titanium alloy material / 12KG Tin bath capacity: Power: 4*500W, 2KW
Preheating power	Infrared preheating 1KW
Total power	AC 220V 3.5KW
N2 Requirements	Nitrogen purity:99.999% Pressure/Consumption:0.5MPa / 20ℓ/min～30ℓ/min / 1.2 cubic meters
Flux nozzle	0.5mm precision fluid nozzle imported from Japan
Flux capacity	2 L
Gas source	0.5-0.7Mpa
Nozzle inner diameter	φ 3mm~φ 20mm Customizable size
Peak height	Automatic alignment/height measurement
System control	PC+PLC(windows+Huichuan)
Programming software	Support programming for online or offline image production
Video surveillance	Real-time video monitoring makes it convenient to watch the welding effect
Power supply/power	Single-phase 220V±10 Starting power:3.5KW
Weight	120KG (Containing solder12KG)
YS-320YExternal dimensions	LWH 910×980×1350 mm (With a display)
YS-320YTExternal dimensions	LWH 910×980×1500 mm (Including the upper cover)

High accuracy /High quality Integrated selective wave soldering YS-320Y/ YS-320YT 1

Comparison of conventional production equipment

	Project	Ordinary wave soldering	Soldering iron robot	Selective welding machine
	Project
1	Production application scope	Mass production/conventional process	Small-batch welding/simple process	Small batch/multiple models The welding quality requirements are high
2	Multilayer circuit board Through-hole tin permeability	50%	80%	99.99%
3	Tin bath capacity	400-500kg	Soldering wire	12KG
4	The amount of solder slag produced in 8 hours	5～8 KG	0.5 KG	0.2 KG
